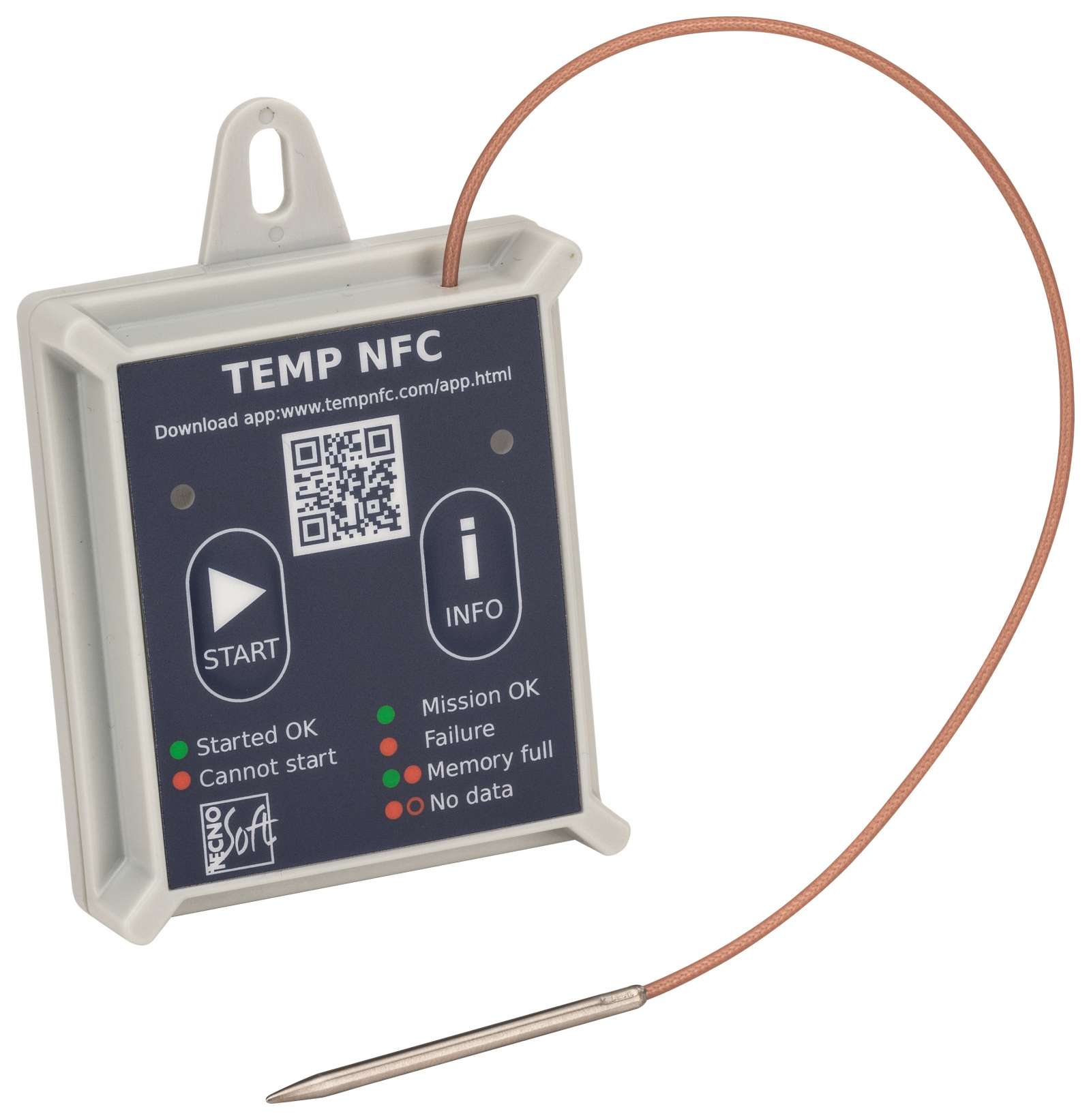

Contactless temperature logger with external probe for -80°C

Rigid case version of the NFC contactless temperature data logger with cable and rigid metal probe of verious lengths, calibrated from -80°C up to 20°C; it has a wide range of monitoring applications especially in the food and pharmaceutical industry, for continuous monitoring in ultra freezers and external probe managed through Android devices with dedicated App from Google Play. Allows to manage temperature monitoring using a Smartphone or a Tablet to INSTANTLY share the readings you downloaded. With Reference Traceable calibration certificate and user replaceable battery.

The rigid metal probe is made with stainless steel AISI 316L, food grade, and is available in different types:

  • 3 cm length, 4 mm diameter, rounded tip for immersion (ordering code 03)
  • 8 cm length, 4 mm diameter, rounded tip for immersion (ordering code 04)
  • 3 cm length, 4 mm diameter, pointed tip for penetration (ordering code 05)
  • 8 cm length, 4 mm diameter, pointed tip for penetration (ordering code 06)

Cable is 2 mm diameter and has a standard length of 50 cm but it can be ordered longer.

Wall mount accessory available.



Video

Applications

Main features

  • Start and download using NFC Android devices (download App from Google Play)
  • Long life battery: 10 years or 3 millions of acquisitions
  • Manual start option Mission status LED and button (running, stopped, OK, alarm)
  • Check against alarm thresholds and transport duration
  • MKT calculation is done on the App
  • BarCode and QR Code scan of the items being monitored in the shipment
  • Geolocalization of the start and stop positions, saved with the mission data

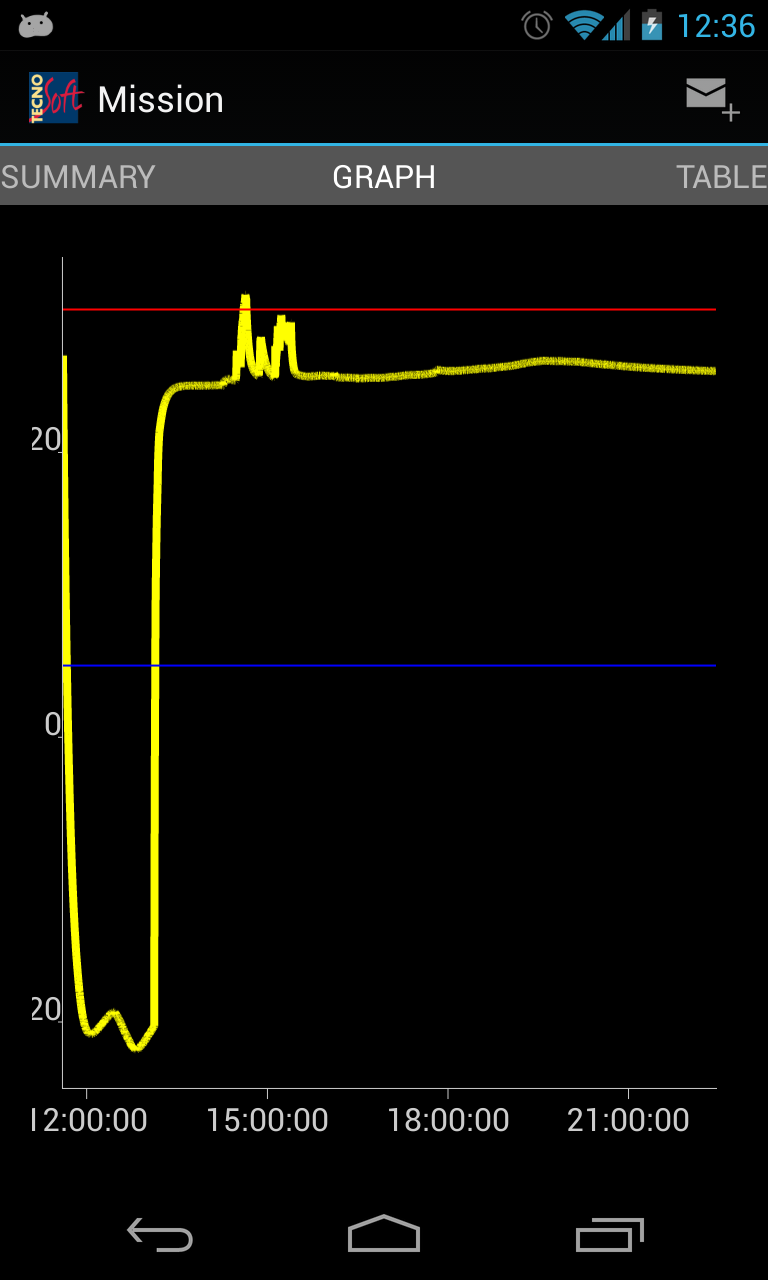

  • View readings in graphical or tabular format
  • Create mission templates to quickly start the devices, without entering settings every time
  • Additional Information: sender, receiver, operator, notes etc.
  • Automatically send PDF reports to the email address set by the sender
  • Synchronization with the Tecnosoft Cloud (TempNFC Ent App)
  • Accredia (NIST equivalent) traceable calibration certificate on one or more calibration points available
  • Suitable for vaccines and drugs monitoring at -80°C

Plus

  • No extra accessory: your smartphone is all you need
  • Small size suitable for every package and box
  • Keep tracking of transported products along with temperature thanks to the bar code and QR codes
  • Fast response time with the external probe
  • User replaceable battery
  • Provided with calibration certificate Accredia (NIST equivalent) traceable

The system

TempNFC data logger does not need of any additional accessory. Just download the Android App and you are ready to start using it.

Dimensions 67 X 20 X 97 (mm)
Probe dimensions Cable 500 l X 2 Ø (mm) or longer - Probe 30 or 80 l X 4 Ø (mm) pointed or rounded
Weight 18 g
Temperature range -30 °C ÷ +60 °C
Sensor temperature range -80 °C ÷ +20 °C
Standard calibration points (temperature) -80/-40/0/20°C
Extra calibration points (temperature) Within standard calibration range
Temperature resolution 0,03 °C
Temperature accuracy ± 0,2 °C (within the calibration range)
Memory (n. of acquisitions) 3.928 (may diminish according to the amount of notes)
Acquisition step From 1 every second up, with 1 second steps
Buttons and functions Start, status, limits check
Functions LED for status: acquisition, stand by, out of limits
Battery type 3.0V CR2032 lithium, user replaceable (2017 IATA DGR: PI970 Section II, < 4 cells)
Battery life Up to 10 years or 3 millions of acquisitions
Protection degree IP67
Software&Mobile App TempNFC Ent
It requires NFC Android device
