TempStick
TempStick temperature data logger is a miniaturized recorder with a wide range of monitoring applications: from temperature controlled transports of food and …

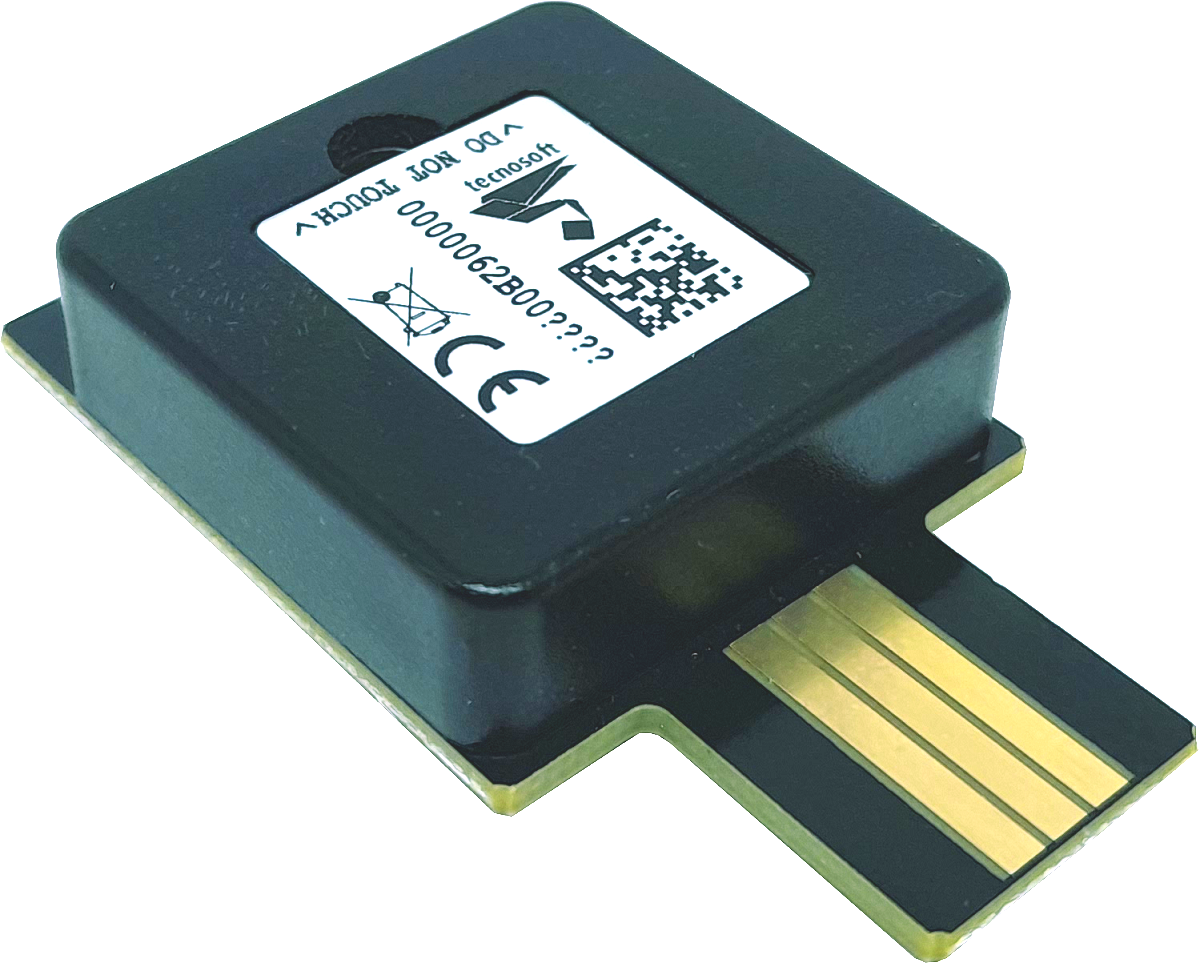

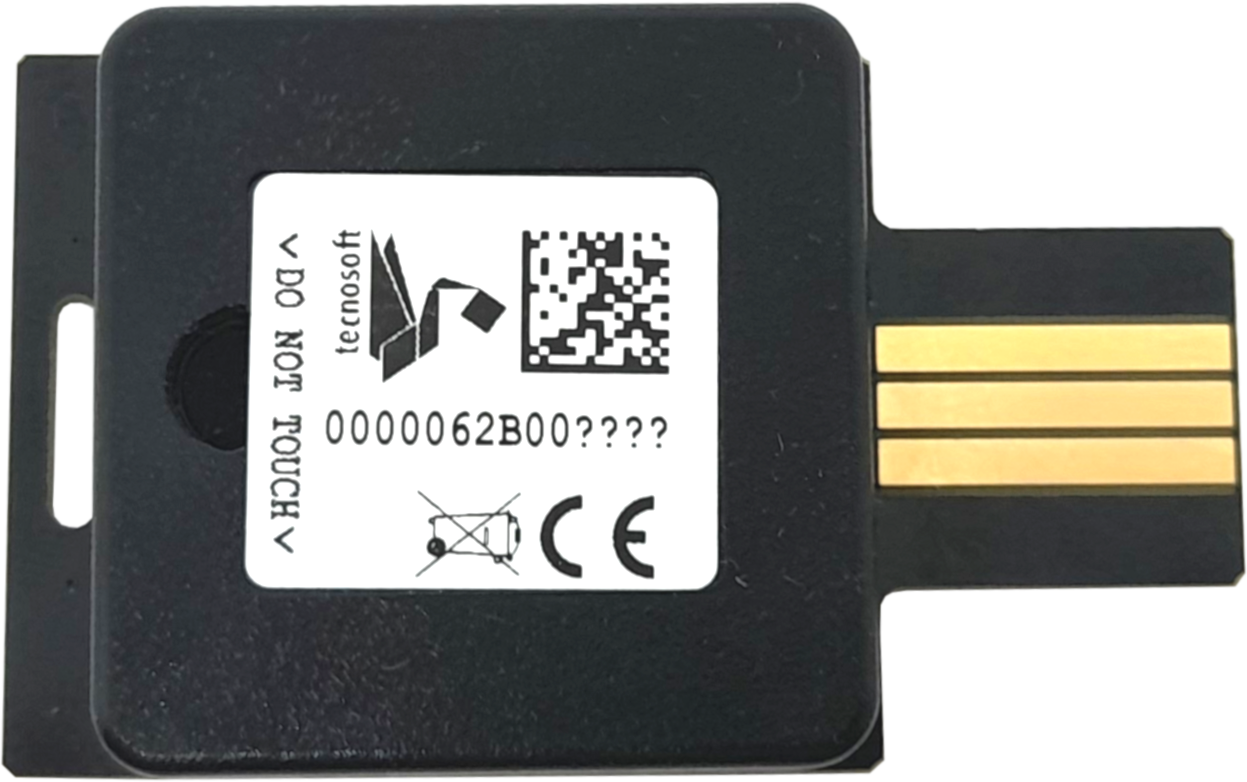

The HumiStick is a miniature temperature and humidity data logger with a wide range of monitoring applications: from temperature and humidity controlled transports of food and chemical or clinical reagents to continuous monitoring in warehouses and stockhouses. Its reduced size together with the fact that it does not need an external power supply makes it an extremely versatile system. A special filter protects the sensor from external contaminants and guarantees correct readings. The data logger can be supplied with verification of calibration certificate with Accredia (Italian reference center, NIST equivalent) traceability.
It works with the TecnoStick Interface and the SRI, the same used by the TempStick. It works also with the FridgeLog system and the FLI portable interface.
The basic system is made up by:
The FridgeLog Z system, for continuous monitoring, is made up by:
It may be used for warehouses, environment, fridges validation:
Weight | 11 g |
---|---|
Temperature range | -30 °C ÷ +60 °C |
Standard calibration points (temperature) | 5/30/50°C |
Extra calibration points (temperature) | Within the range -30 °C ÷ +60 °C |
Temperature resolution | 0,1 °C |
Temperature accuracy | ± 0,4 °C from +5 °C to +40 °C / ± 1 °C from -30 °C to +60 °C |
Humidity range | 5% ÷ 95% RH (non condensing) |
Standard calibration points (humidity) | 30/50/70% @ 30°C ± 10°C |
Extra calibration points (humidity) | Within the range 10% ÷ 90% RH |
Humidity reslution | 0,1% |
Humidity accuracy | ± 3% RH from 20% to 80% / ± 4% RH from 5% to 95% |
Memory (n. of acquisitions) | 1.365 |
Acquisition step | From 1 every minute to 1 every 255 minutes |
Battery type | 3.0V CR2032 lithium (2017 IATA DGR: PI970 Section II, < 4 cells) |
Battery life | Up to 10 years or 3 millions of acquisitions |
Protection degree | IP50 |
Software&Mobile App | StickLog Pro, TS Manager |
Accessories | TecnoStick Interface |
Dimensions | 54 X 32 X 11 (mm) |
