PressPDF-L

USB temperature, humidity and pressure data logger with LCD and generation of PDF report. HACCP and EN12830 regulations complaint.

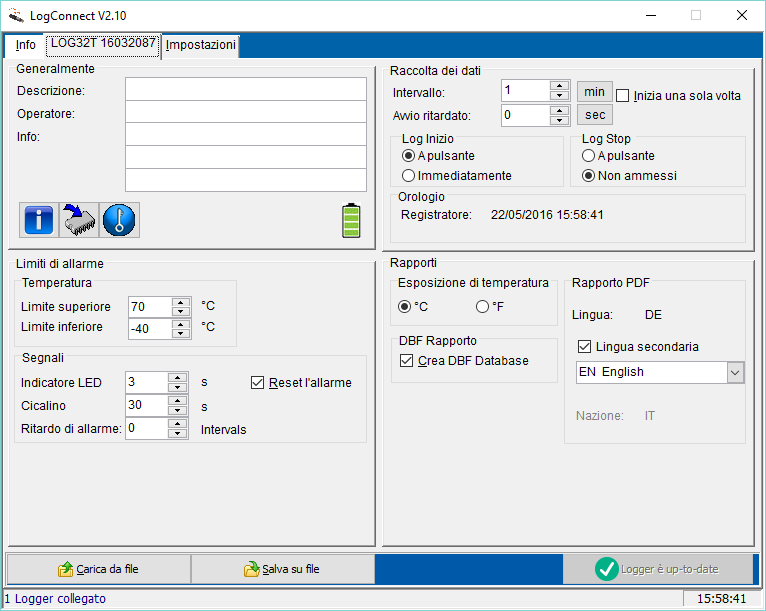

PressPDF-L is a temperature, humidity and pressure recorder with wide display for data immediate visualization, USB PC connection and generation of a PDF report. Optionally the Log Connect software, downloadable from Tecnosoft website, is available to start the devices and set the reports' language. Data are exportable into excel format. The device has out of limits acoustic alarms and buttons to start and stop acquisitions. Battery is user replaceable.

Request information

Product sheet

Download

Log Connect 3.86 - Complete software (USB drivers included)

Software download and related accessories

Log Connect

USB/PDF battery kit

Video

Applications

Environment

Industrial

Healthcare

Pharmaceutical

Medical

Main features

Automatic PDF reports, without the use of any additional software
Wide display for current data reading
HACCP and EN12830 regulations complaint
Provided with verification of calibration certificate Accredia (NIST equivalent) traceable (on demand)
Acoustic alarms and start/stop buttons with customizable alarm limits
Long battery life
Mounting brackets included

Plus

No software needed (software is available but not necessary)
No extra accessory: just connect the logger to your PC USB port and you are ready to go
Easy to use
Large selection of models and versions

The system

PressPDF-L data logger does not need of any additional accessory. If you want download the Log Connect software for a more advanced management.

Dimensions	91,5 X 42 X 20 (mm)
Weight	70 g
Temperature range	-40°C ÷ +70°C
Standard calibration points (temperature)	5/30/50°C
Extra calibration points (temperature)	Within the range -40 °C ÷ +70 °C
Temperature resolution	0,1 °C
Temperature accuracy	± 0,5 °C from 0 °C to +60 °C (otherwise ± 1°C)
Humidity range	0% ÷ 100% RH (not condensing)
Standard calibration points (humidity)	30/50/70% @ 30°C ± 10°C
Extra calibration points (humidity)	Within the range 10% ÷ 90% RH
Humidity reslution	0,1%
Humidity accuracy	± 3% RH from 40% to 60%, ± 3,5% RH from 20% to 40% and from 60% to 80%, otherwise ± 5% RH
Pressure range	300 mbar ÷ 1100 mbar
Pressure resolution	0.1 mbar
Pressure accuracy	± 1 mbar (900 mbar ÷ 1100 mbar) / ± 0,5%
Memory (n. of acquisitions)	60.000
Acquisition step	From 1 every 30 seconds to 1 every 24 hours
Display and functions	Current value for each channel, acquisition and battery status indication
Buttons and functions	Start, status, limits check, stop
Communication	USB
Battery life	Nearly 4 years with 15 minutes acquisition step
Alarms	Local (acoustic)
Battery type	1 x 1/2AA size 3,6 volt

Documentation

Log Connect and PDF loggers - Manual, multilanguage

TempPDF-L, HumiPDF-L, PressPDF-L Quick Start Guide, Multilanguage
